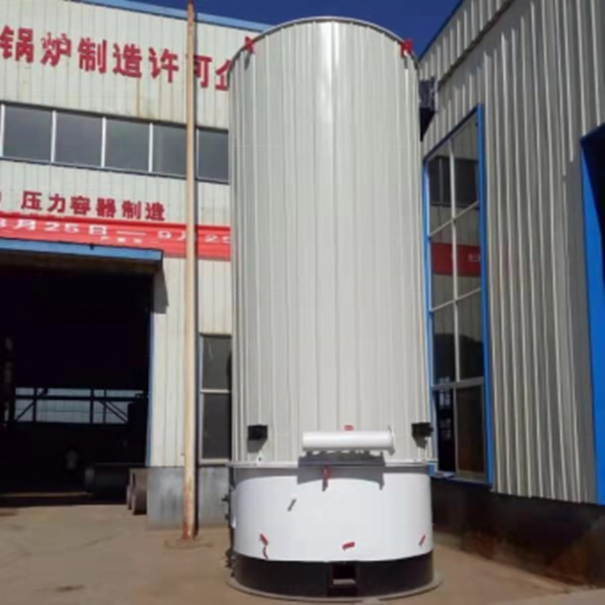

1000000 Calorie Boiler

11-04-2021

•
  •
  •
  •

• 1000000 Calorie Boiler


  Technical Parameter





  1	Product Name	1 Million Calorie Boiler
  2	Model No.	LGN-1200MC
  3	Boiler Main Body	High Grade Insulation Material
  4	Combustor	Made in Dalian
  5	Circulating Pump	22KW
  6	Filling Pump(Including Motor)	2CY3.3/3.3-1,1.5KW
  7	Induced Draught Fan	11KW Qingdao Hongchang
  8	Air Blower	1.5KW Qingdao Hongchang
  9	Multi-tube Dust Cleaner	XTD-2
  10	Air-Oil Separator	DN125-50
  11	High Expansion Tank	1.5CBM
  12	Low Oil Groove	4.5CBM
  13	Oil Filter	DN125 Y-Type
  14	Carbon Steel Pipe	Φ400*12pcs
  15	Electrical Cabinet	DKG-100
  16	Plate Level Gauge	DN20 L=800
  17	Plate Level Gauge	DN20 L=1100
  18	Platinum Resistance Thermometer	PT100*2PCS
  19	Thermal Resistor	M27*2PCS
  20	Spiral Wound Gasket	Φ27*2PCS
  21	Bimetallic Thermometer	WSS-501 L=150 2PCS
  22	Thermometer Stand	M27*2PCS
  23	Spiral Wound Gasket	Φ11*2PCS
  24	Vibration-proof Pressure Gauge	Y-150(0-1.6Mpa)
  25	Pressure Gauge Gasket	Φ17*4PCS
  26	Needle Valve	DN15*2PCS
  27	Surface Deflection	Φ18*2PCS
  28	Float Lever Controller	UQK
