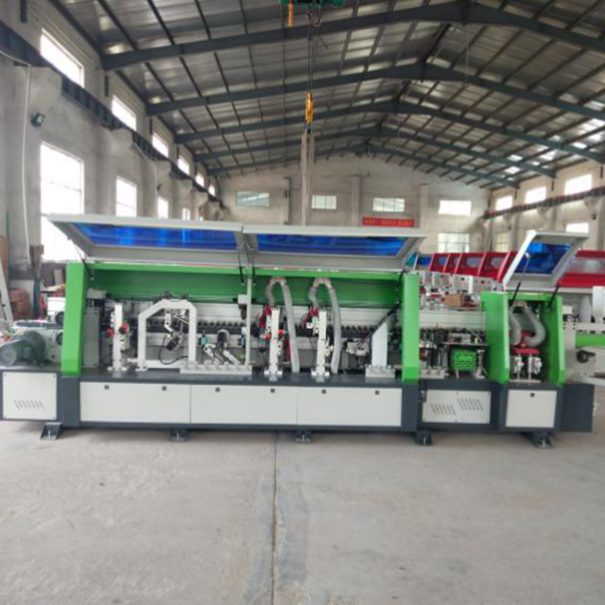

Automatic Edge Banding Machine

15-04-2021

•

• Automatic Edge Banding Machine

  Technical Parameter








  1	Product Name	Automatic Edge Banding Machine
  2	Model No.	LGNML-468J
  3	Conveying Speed	10-15-23m/min
  4	Panel Thickness	10-60 mm
  5	Edging Thickness	0.4-3 mm
  6	Panel Length	≥150 mm
  7	Panel Width	≥60 mm
  8	Min. Panel Size	300(L)*60(W)mm 150(L)*150(W)mm
  9	Working Pressure	0.6Mpa
  10	Total Mechanical Power	17KW
  11	Overall Dimension	6700*850*1600mm
  12	Weight	2200KGS
