Venner Composer

31-01-2019

•
  •
  •
  •
  •

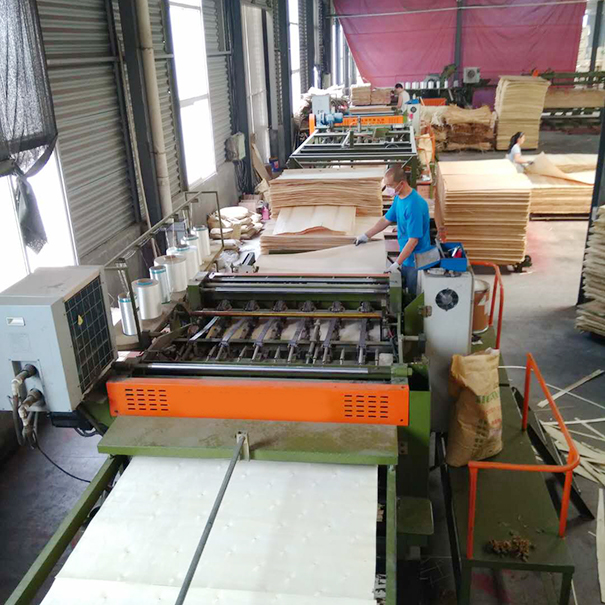

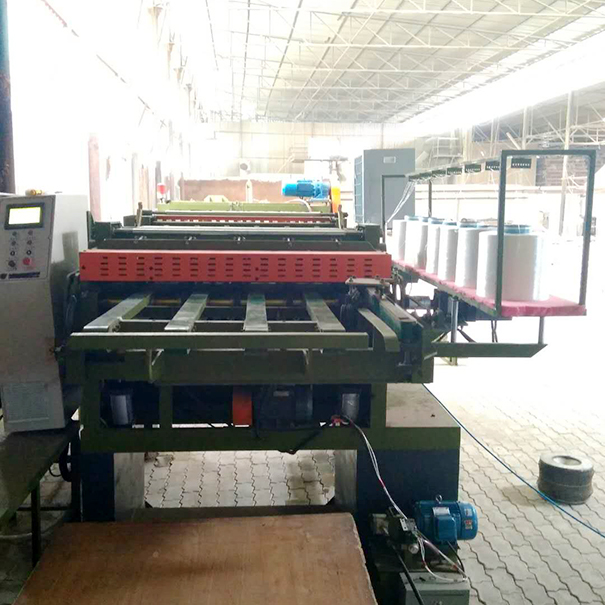

• Core Veneer Composer Machine




  Technical Parameter:







  ●standard ○ optional
  1	Product Name	Core Composer Machine
  2	Model No.	LGN-CCM100
  3	Driver	Servo-type
  4	Overall Dimension	12000*2600*2500mm
  5	Structure	Overall Steel Plate Laser Cutting
  6	Tranmission Speed	0-35m/minute (adjustable)
  7	Working Efficiency	300pcs/h
  8	Composer Length	3600mm
  9	Composer Width	2600mm

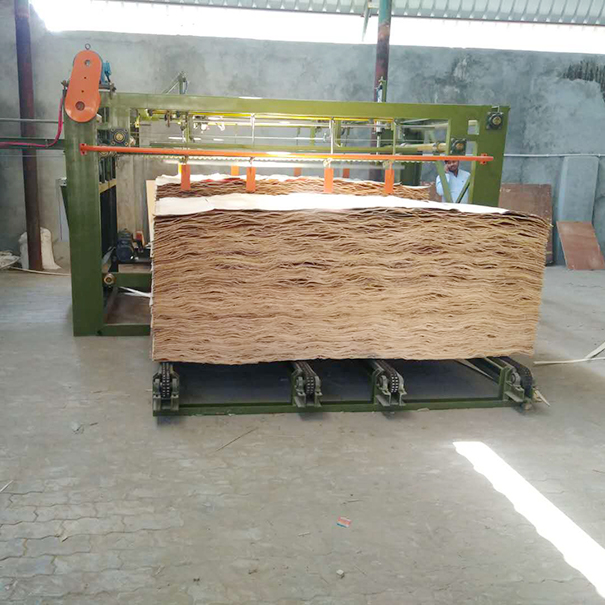

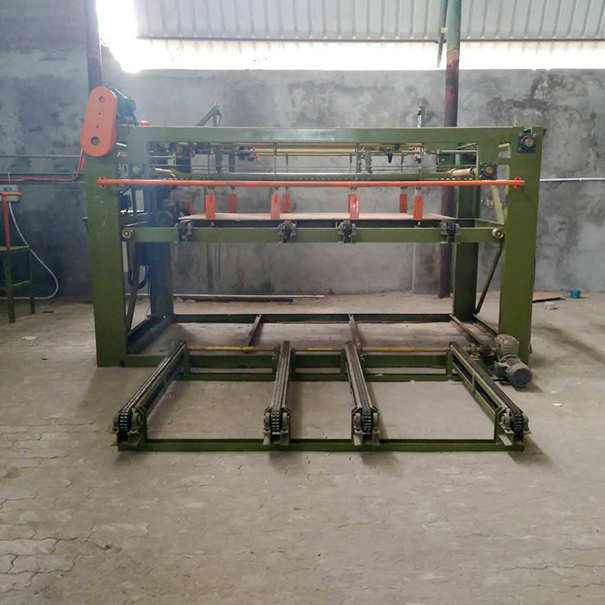

  10	Stacker Length	4000mm
  11	Stacker Height	2500mm
  12	Stacker Width	2200mm
  13	PLC Computer Module	Delta PLC(Taiwan)
  14	Weight	6.5 Tons
  15	Total Power	16.5Kw
  16	Front Drive	Siemens Servo Motor 3.5Kw
  17	Rare Drive	Siemens Servo Motor 3.5Kw
  18	Edge Cutting Driver	Motor + CHAIN TAIL clutch Brake(Taiwan)
  19	Front Drive Reducer	Newstart Reducer 8/1(CHINA)
  20	Rare Drive Reducer	Newstart Reducer 8/1 (CHINA)
  21	Rotary Actuator	FESTO (Germany)
  22	Auto Corrector	●
  23	Water Cooling Air Conditioner	●
  24	Electrical Lateral Platform	●
  25	4*4-4*8 Electric Conversion	●
  26	Color	○
  27	Feeding Table Lifts	●
  28	Speed Control	●
  29	Boards Counter	●
