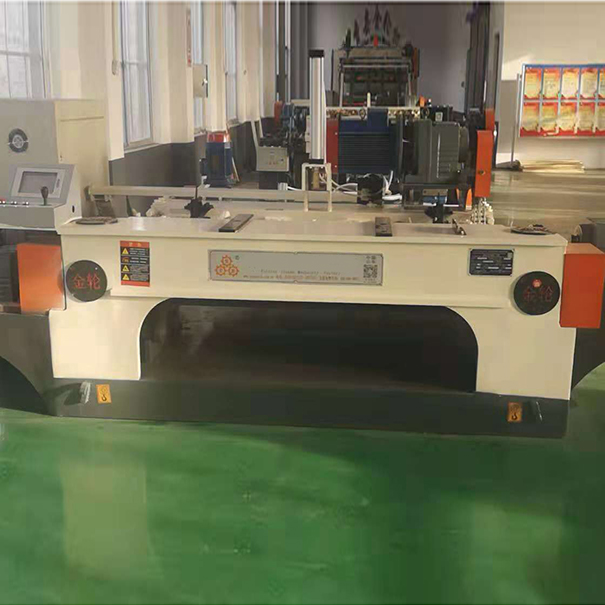

Veneer Rotary Cutting Machine

31-01-2019

•
  •
  •
  •
  •

• Veneer Rotary Cutting Machine





  Technical Parameter:

  1	Product Name	Dual-power Rotary Cutting Machine
  2	Model No.	LGN-RCM130
  3	Log Size(D*L)	φ500*1300mm
  4	End Peeling Min. Log Diameter	φ25mm
  5	Max. Blade  Bed-plate	600mm
  6	Veneer Thickness	0.8-3.2mm
  7	Size of Blade	1500*180*16mm
  8	Peeling Speed	30-80m/min
  9	Motor Power	5.5Kw*2+7.5Kw*2+11Kw+1.5Kw+2.2Kw
  10	Frequency Converter	30Kw+15Kw+3.7Kw
  11	Overall Dimension	4500*2200*1400mm
  12	Weight	5 Tons
