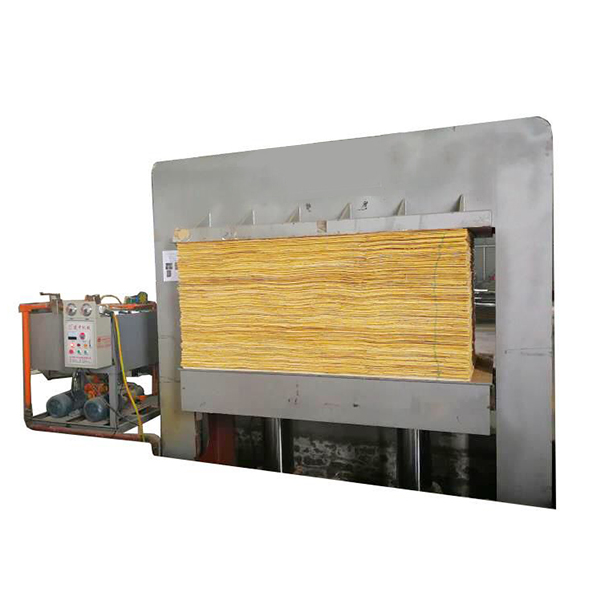

Plywood Cold Press/Pre-press

31-01-2019

•
  •
  •
  •
  •

• Plywood Cold Press/Pre-press




  Technical Parameter:




  1	Product Name	Plywood Cold Press / Pre-press
  2	Model No.	LGN CP400
  3	Total Pressure	4000 KN
  4	Board Feeding Direction	Transverse
  5	Opening	1800 mm
  6	Pressing Time	30 s
  7	Oil Cylinder	Φ320mm*2 Sets
  8	Power	15KW
  9	Thickness of frame steel platen	35 mm Q235
  10	Structure	Combined Frame Structure
  11	Weight of Machine	Approx. 10 Tons
  12	Overall Dimension	3550*1400*4100mm
  13	Upper & Bottom Beam	800mm
  14	Middle Crossbeam	400mm
  15	Hydraulic System	Standard Hydraulic Station
