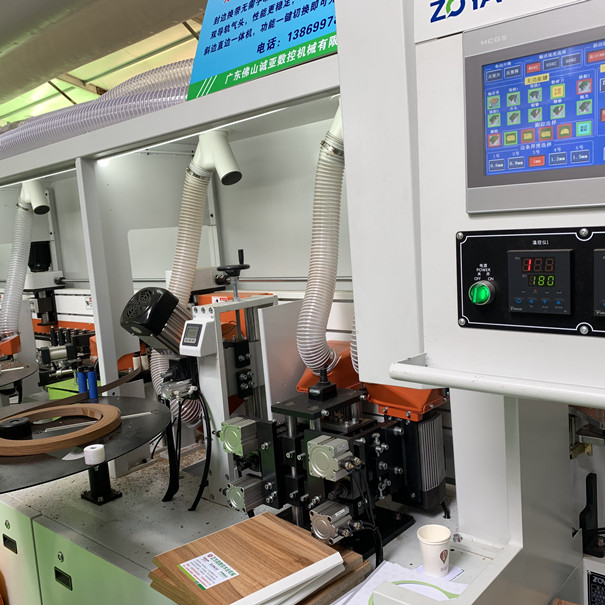

Automatic Edge Banding Machine

13-01-2021

•
  •

• Automatic Edge Banding Machine




  Technical Parameter:







  1	Feed Speed	12-20mm/min
  2	Panel Thickness	10-60 mm
  3	Edging Thickness	0.4-3mm
  4	Panel Width	≥80mm
  5	Working Pressure	0.6 Mpa
  6	Overall Dimension	4500*1000*1600mm
  7	Net Weight	2000KG
  8	Belt Cutter	1 Set
  9	Parallel Head Saw Blade	1 Set
  10	Rough Knife	1 Set
  11	Finished Trimming Knife	1 Set
  12	Tracking Knife	1 Set
  13	Edging Knife	1 Set
  14	Delta Display Screen	1 Pc
  15	Schneider AC Contactor	6 Pcs
  16	LS/LG PLC	1 PC
  17	Korean Kaikun Stroke Switch	3 Pcs
  18	Yiri Proximity Switch	1 Pc
  19	Solenoid Valve	6 Pcs
  20	Yiri Cylinder	9 Pcs
  21	Trimming Motor	0.75 KW
  22	Parallel Head Motor	0.37 KW
  23	Tracking Motor	1 Pc
  24	Conveyor Motor	2.2 KW
  25	Bearing	Made In Japan
  26	Lead Rail	Inlet Rail
