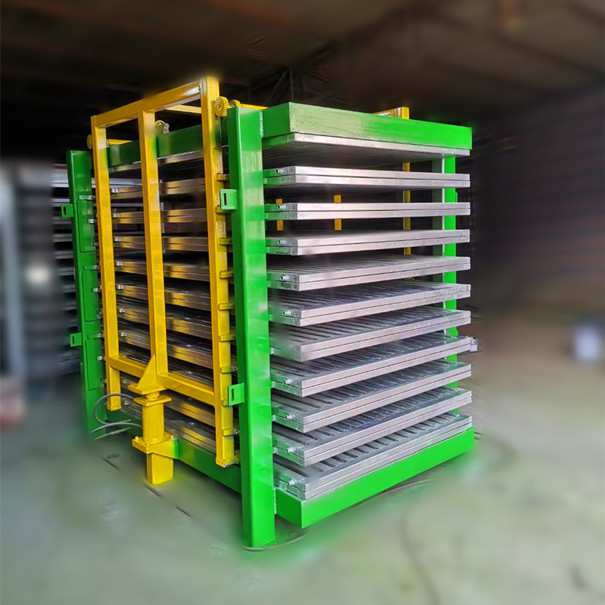

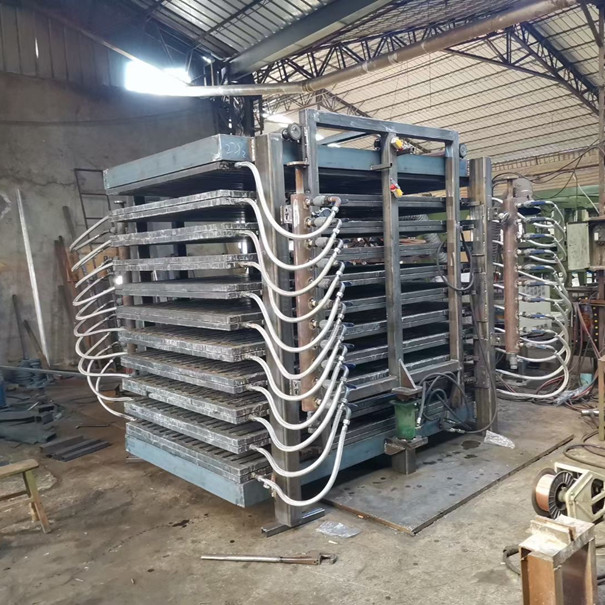

Press Drier（Pipes）

14-01-2021

•
  •
  •
  •

• Press Drier（Pipes）


  Technical Parameter：





  1	Product Name	Press Drier (pipes)
  2	Model No.	LGN DP200-15
  3	Number of Daylights	15 Layers
  4	Nominal Gross Pressure	5500KN
  5	Closing Time	15s
  6	Weight	Approx. 5.5 Tons
  7	Daylight Opening	70 mm
  8	Platen Size	2700*1370*40 mm
  9	Strengthed Frame Thickness	3mm
  10	Oil Cylinder	2 sets
  11	Dimension	4500*1340*2100mm
  12	Production Capacity	>20cbm/cube/hr
  13	Power	5.5 Kw
