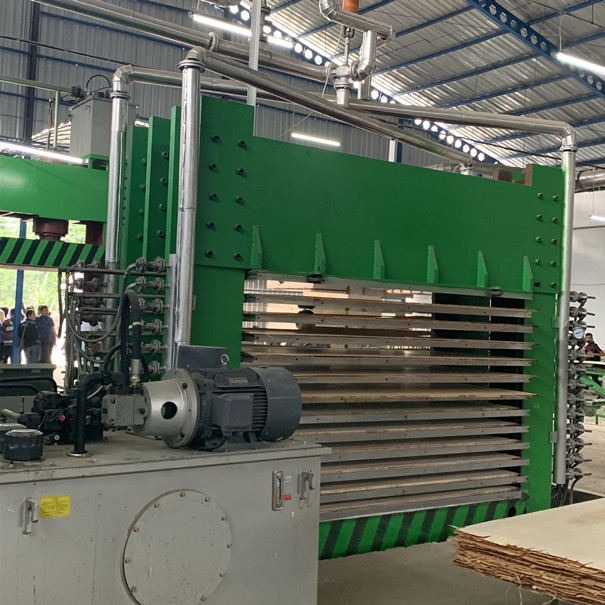

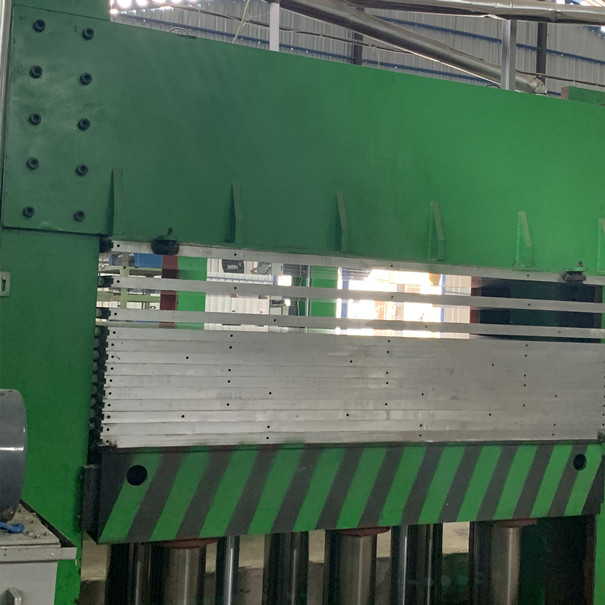

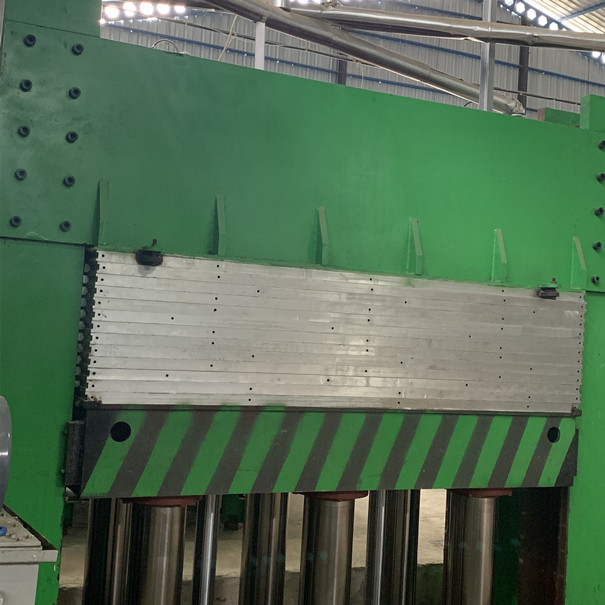

Hot Press with Hardchrome Solid Platen

14-01-2021

•
  •
  •
  •

• Hot Press with Hardchrome Solid Platen




  Technical Parameter:




  800T 12 Daylights Hot Press (single side)
  1	Total pressure	8000 KN
  2	Board size	2440 *1220 mm
  3	Feeding direction	Transverse
  4	Up heating platen size	1370*2700*52mm(double inlet & outlet)
  5	Daylight opening	85 mm
  6	Hot press layers	12
  7	Hot press plate quantity	13
  8	Hot press platen	Hardcrom Solid Platen
  9	Main oil cylinder	Φ 260 mm*1500mm *6 pcs
  10	Small lifting cylinder	Ф120mm*1500mm*2pcs
  11	Allowable pressure	≤26Mpa
  12	Low pressure pump flow	76ml/r
  13	High pressure flow	18ml/r
  14	Power	22.5kw
  15	Allowable pressure	≤26Mpa
  16	Closing time	15 s
  17	Thickness of frame steel platen	35 mm
  18	Structure	Combined frame structure
  19	Main motor power	18.5kw+7.5kw
  20	Weight (1 ton = 1000 Kg)	Approx. 39 tons
  21	Dimension	1370*3555*4500mm
  22	Electrical appliance brand	Schneider
  23	PLC brand	DELTA (Taiwan brand)/Ucontrol
  24	Origin of cylinder	Wuxi
  25	Pressure gauge	Wuxi
  26	Hydraulic valve	PF-125
  27	Temperature Control System
  28	Other Accessories	Like valves, pipes
