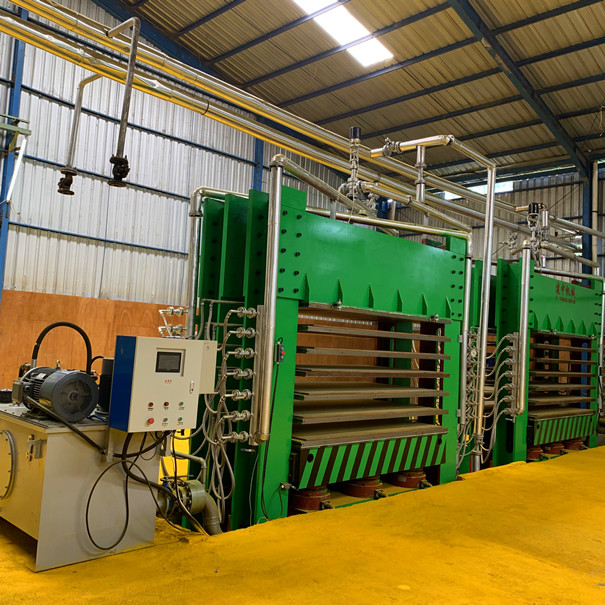

800T 6 Daylights Hot Press

14-01-2021

•
  •
  •

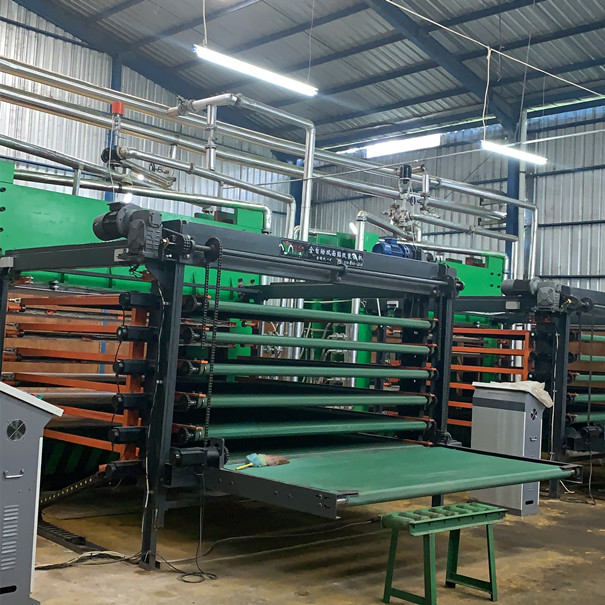

• 800T 6 Daylights Hot Press with Automatic Feeding Machine and Unloading Frame




  Technical Parameter:







  800T 6 Daylights Hot Press (with Automatic Feeding and Unloading Frame )
  1	Total Pressure	8000 KN
  2	Board Size	2440 *1220 mm
  3	Feeding Direction	Transverse
  4	Up heating Platen Size	1370*2700*52mm(double inlet & outlet)
  5	Daylight Opening	200 mm
  6	Hot Press Layers	6
  7	Hot Press Plate Quantity	7
  8	Main Oil Cylinder	Φ 260 mm*1200mm *6 pcs
  9	Main Oil Cylinder Working Stroke	1000 mm
  10	Small Lifting Cylinder	Ф120mm*1200mm*2pcs
  11	Small Lifting Cylinder Stroke	1000mm
  12	Allowable Pressure	≤25Mpa
  13	Low Pressure Pump Flow	75ml/r
  14	Motor Power	22kw
  15	High Pressure Flow	17ml/r
  16	Power	7.5kw
  17	Allowable Pressure	≤25Mpa
  18	Closing Time with Loading	10-15 s
  19	Thickness of Frame Steel Platen	35 mm
  20	Structure	Combined frame structure
  21	Main motor power	18.5kw+7.5kw
  22	Weight	Approx. 35 tons
  23	Dimension	1370*3555*4200mm
  24	Electrical Appliance Brand	Schneider
  25	PLC Brand	DELTA (Taiwan brand)/Ucontrol
  26	Origin of Cylinder	Wuxi
  27	Pressure Gauge	Wuxi
  28	Hydraulic Valve	PF-125
  29	Temperature Control System
  30	Other Accessories	Like valves, pipes
